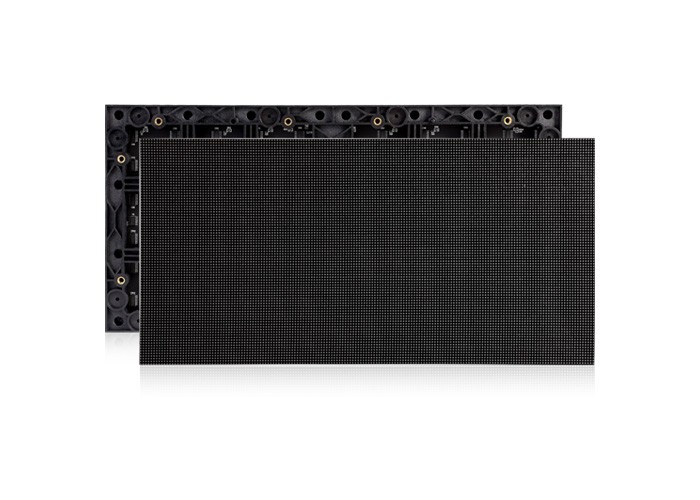

WH-C1.86

Project

Product Parameter

Module

Parameter

SMD

SMD1515

Pixel Pitch

1.86

Module Resolution〔W×H)

14792

Module Size(mm)

320 W)×160(H)×16.6(D)

Module Weight(kg)

0.46

Working Voltage(V)

4.5V/5V

Module Power(W)

≤25

Optics

Parameter

Creen Brightness(nits)

≥500

Color Temperature(K)

6500K (1000K9500K)

Viewing Angle

140/140

Contrast Ration

208

Electrical

Parameter

Power Consumption(Max)

550

Power Consumption(Average)

263

Input Voltage

AC90~132V/ AC186~264V,Frequency47-63 (Hz)

Applicabler Standards

GB4913/ENG0950

Processing

Performance

Frameshift Frequency

60Hz

Scan Mode

43Scan

Gray Level

16384

Refresh Frequency

3840

Environmental

Parameter

Life Span

100,000

Working Temperature/Humidity

-20℃ -50℃ / 10%-65%RH

Storage Temperature/Humidity

-10℃ - 30℃ / 10%-60%RH

Applicable Standards

SJT 11141-2017.GB/T 26125-2011、GB/T 26572-2001
