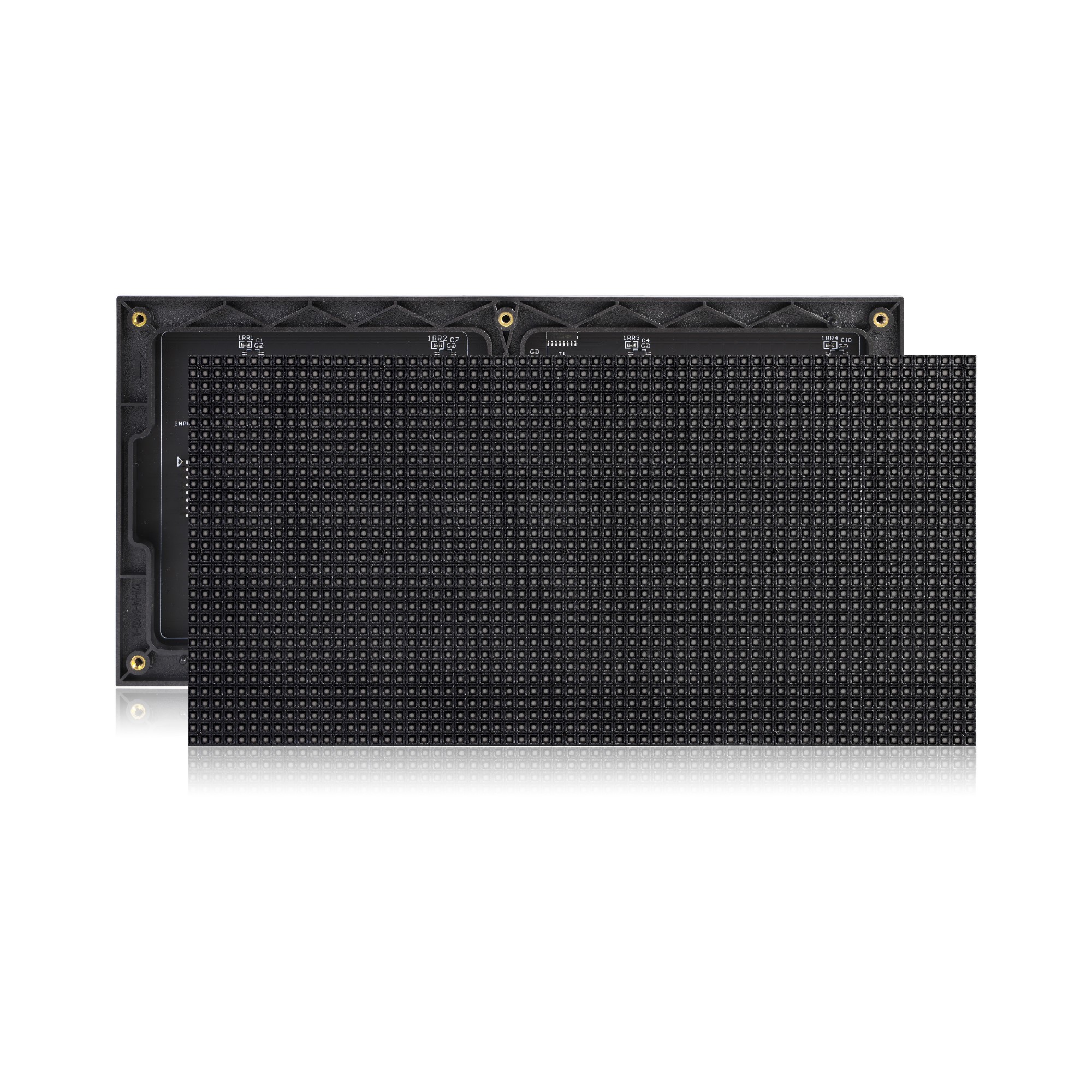

Project |
Product Parameter |
|
|
Module Parameter |
SMD |
SMD2121 |
|
Pixel Pitch |
4 |
|
|
Module Resolution〔W×H) |
3200 |
|
|
Module Size (mm) |
320（W)×160(H)×14(D) |
|
|
Module Weight（kg） |
0.41 |
|
|
Working Voltage |
4.5V/5V |
|
|
Module Power（W) |
≤17 |
|
|
Optics Paremeter |
Screen Brightness（nits) |
≥700 |
|
Color Temperature（K) |
11345 |
|
|
Viewing Angle |
140/140 |
|
|
Contrast Ration |
203 |
|
|
Electrical Parameter |
Power Consumption(Max) |
334 |
|
Power Consumption(Average) |
234 |
|
|
Input Voltage |
AC90~132V/ AC186~264V，frequency47-63 (Hz) |
|
|
Applicable Standards |
GB4913/ENG0950 |
|
|
Processing Performanc |
Frameshift Frequency |
60Hz |
|
Scan Mode |
20Scan |
|
|
Gray Level |
16384 |
|
|
Refresh Frequency |
1920 |
|
|
Enviornmental Paremeter |
Life Span(H) |
100,000 |
|
Working Temperature/Humidity |
-20℃ -50℃ / 10%-65%RH |
|
|
Storage Temperature/Humidity |
-10℃ - 30℃ / 10%-60%RH |
|
|
Applicable Standards |
SJT 11141-2017.GB/T 26125-2011、GB/T 26572-2001 |
|
