  • WH-C3.076

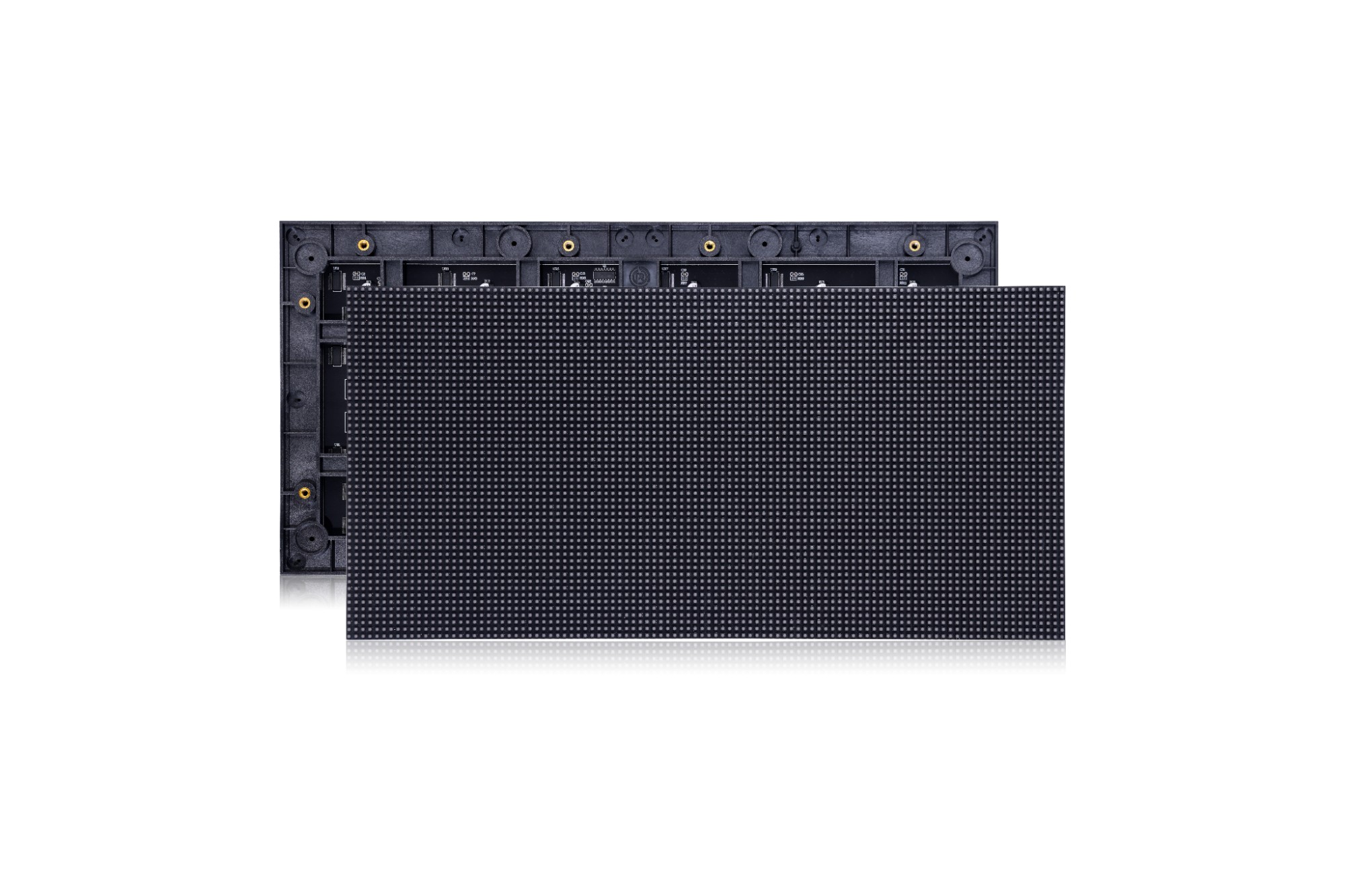

WH-C3.076

Project

Product Parameter

Module

Parameter

SMD

SMD2121

Pixel Pitch

3.076

Module Resolution〔W×H)

5408

Module Size (mm)

320 W)×160(H)×16.6(D)

Module Weight(kg)

0.46

Working Voltage

4.5V/5V

Module Power(W)

≤25

Optics

Parameter

Screen Brightness(nits)

≥500

Color Temperature(K)

6500K (1000K9500K)

Viewing Angle

140/140

Contrast Ration

208

Electrical

Parameter

Power Consumption(Max)

550

Power ConsumptionW/m)

263

Input Voltage

AC90~132V/ AC186~264V,frequency47-63 (Hz)

Applicable Standards

GB4913/ENG0950

Processing

Performance

Frameshift Frequency

60Hz

Scan Mode

32Scan

Gray Level

6124

Refresh Frequency

1920

Environmental

Parameter

Life Span(H)

100,000

          Working Temperature/Humidity

-20℃ -50℃ / 10%-65%RH

          Storage Temperature/Humidity

-10℃ - 30℃ / 10%-60%RH

Applicable Standards

          SJT 11141-2017.GB/T 26125-2011、GB/T 26572-2001
